Rainbow Heat and Power are in the middle of a biomass boiler heating system installation at Bidford Health Centre, an NHS Primary Health Care Centre Practice in Warwickshire. The biomass boiler is being installed as part of a building project being managed by Hardyman Construction to develop a ‘health village’ with a wide range of new health services and an opening date of Easter 2014.
SL 150kW Biomass Boiler Heating System
The project incorporates the supply and installation of a SL 150kW Linder & Sommerauer biomass boiler which will run on EN Plus grade wood pellets. A 4,000 litre Buffer Store plus all associated fitting accessories including and auger and suction system for delivery of the wood pellets are also included.
.jpg)

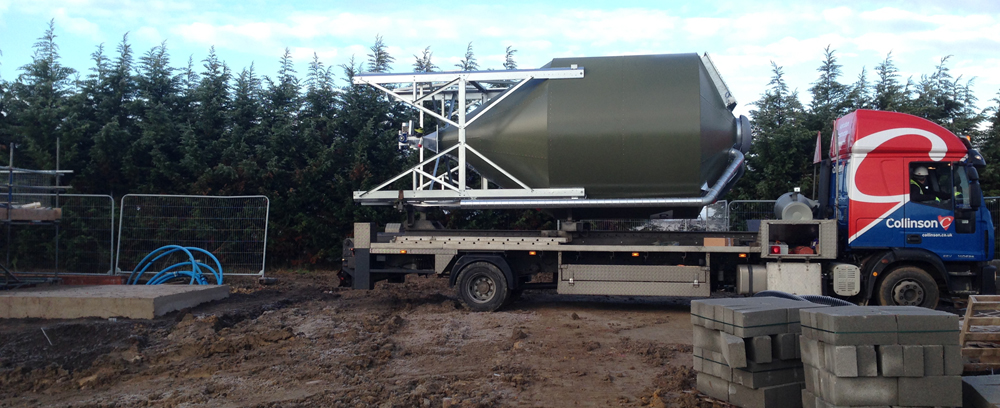

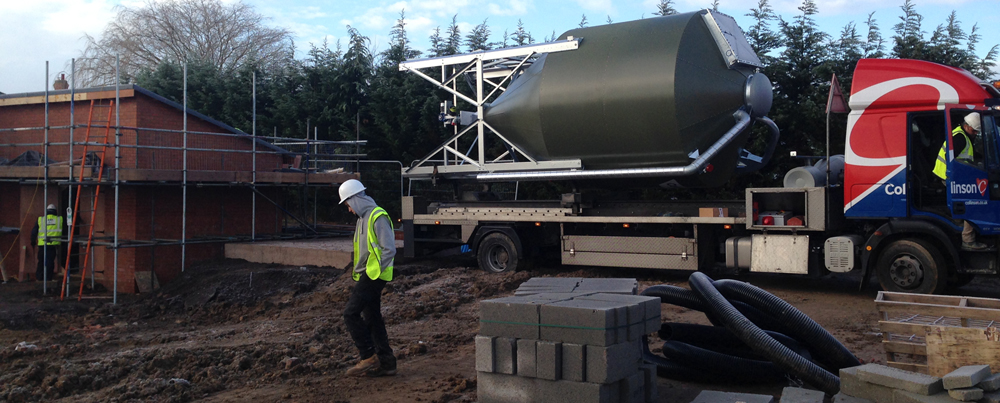

Fuel Store in 15 Tonne Agricultural Silo

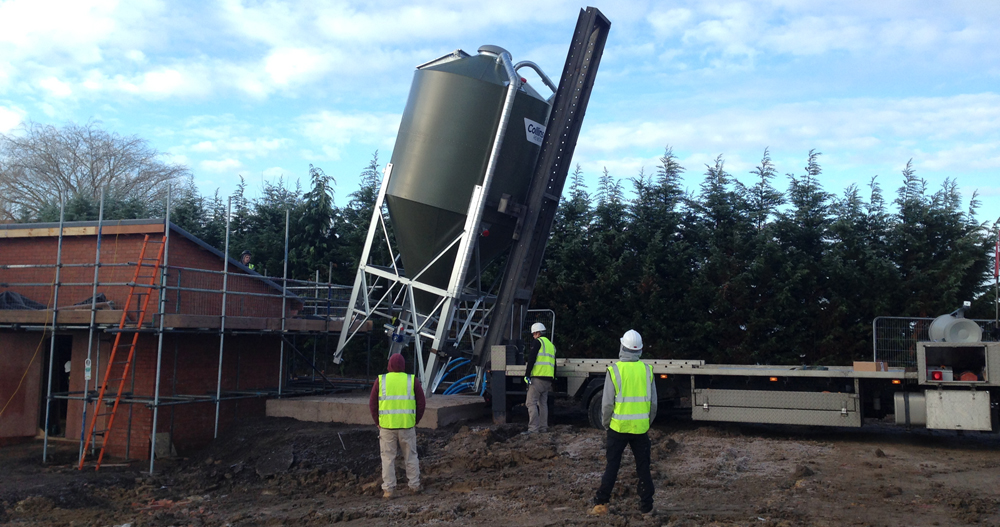

The fuel store will be fitted into a Collinson 15 tonne Biostor agricultural silo including an extraction auger. This gives the boiler a constant supply of wood pellets to ensure a reliable supply of heat.
.jpg)

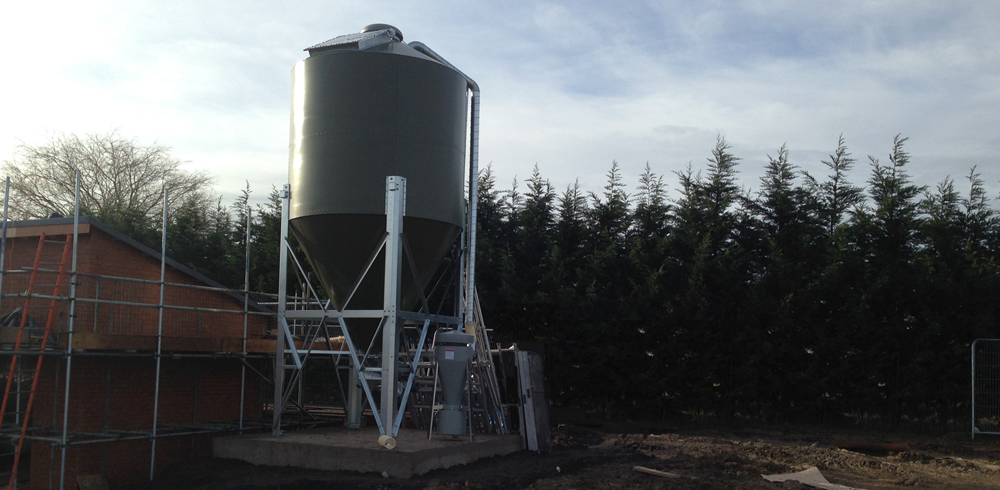

The 60° cone and smooth internal walls of BioStor provide excellent mass flow for EN plus grade wood pellets and this solution is widely used in farming and rural applications.
.jpg)
Features of Collinson Biostor Fuel Stores
- Volumes from 6.7m3 to 54.3m3
- Plasteel™ (Plastic coated galvanised steel) construction
- Smooth internal walls
- Pressure relief valve (0.1 bar)
- AutoVent
- FloView™ SafetyClean
- External filler pipe with Storz coupling
- Heavy duty top filler bend (5mm wall thickness)
- Independent exhaust pipe for discharge of dust to a safe zone
- Level indicators
- Crane lifting points
- Galvanised support structure designed to Eurocode 1, Part 1-4
- Clearance under cone plate: 1300mm
- Explosion panels
- BioStor™ Control Panel
- ATEX (Zone 22) High Level Sensor to prevent overfilling
- ATEX (Zone 22) Low Level Sensor to shut down the system
- (Zone 22) Explosion Panels and Burst Detection Sensors
